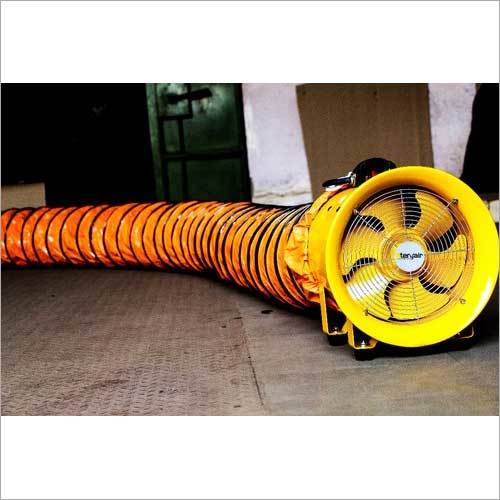

Electric Ventilation Fan
Product Details:
Product Description
With a constant support of adept experts, we are offering a unique range of Electric Portable Ventilation Fans. These are made with a robust construction and modern tools. In addition to these, provided fans ensure a high degree of efficiency. Electric Portable Ventilation Fans are able to give a great performance with its less power consumption. These fans are used to increased engine cooling and improved air conditioning cooling. They are easy to circulate the air in the buildings.
Specification
| Teryair Model No | VF-200-100V | VF-200-200V | VF-300-100V | VF-300-200V | VF-400-200V | VF-500-200V |
| IMPA Code | 59 14 02 | 59 14 06 | 59 14 03 | 59 14 07 | 59 14 08 | 59 14 09 |
| Casing diameter | 200 mm | 200 mm | 300 mm | 300 mm | 400 mm | 500 mm |
| Electric Source | 100 V- 1ph | 200 V- 1ph | 100 V- 1ph | 200 V- 1ph | 200 V- 3ph | 200 V- 3ph |
| Air Volume | 20 m3/min | 20 m3/min | 70 m3/min | 70 m3/min | 110 m3/min | 190 m3/min |
| RPM | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Motor | 0.12 kW | 0.12 kW | 0.55 kW | 0.55 kW | 1.5 kW | 3.7 kW |
| Weight | 9 kgs | 9 kgs | 18 kgs | 18 kgs | 35 kgs | 64 kgs |
